Retigo s.r.o.

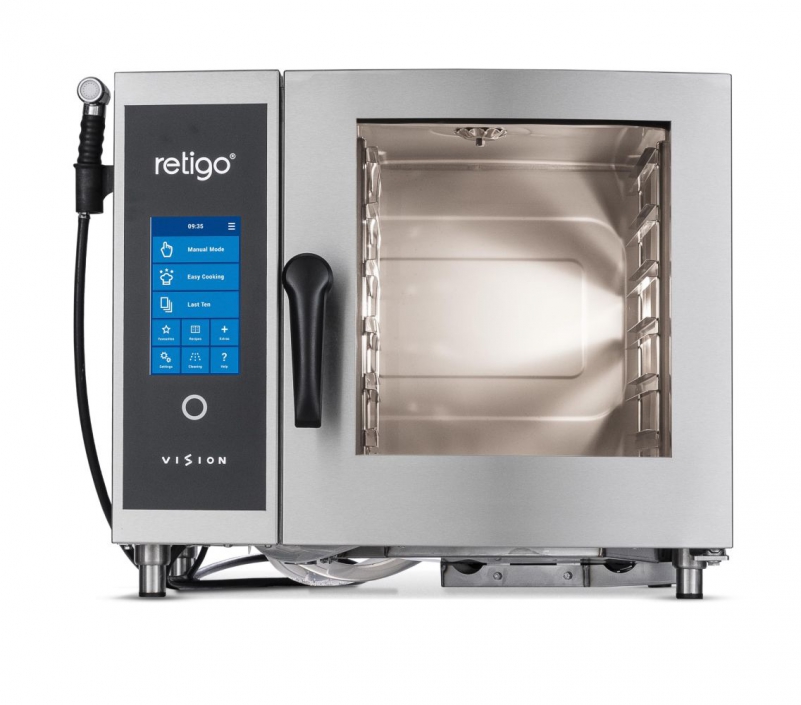

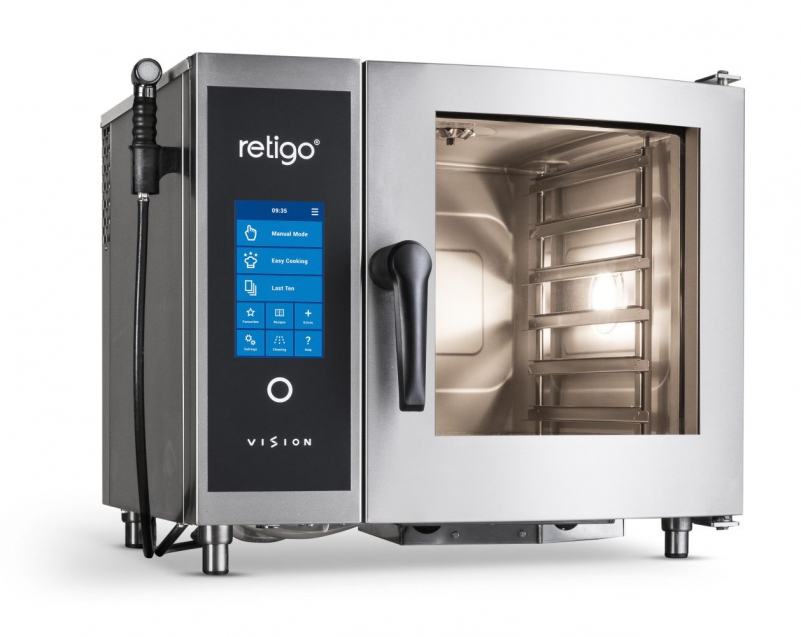

Combi oven B 623 i

Combi oven B 623 i

RETIGO Blue Vision is the highest model series of RETIGO Vision combi ovens. Individual combi ovens are designed to offer everything the demanding user needs. It is controlled through the 8" control panel, offering quick access to all key and special functions. All models in basic configuration are equipped with the functions of automatic cleaning system and Easy Cooking, a flap valve and six-point temperature core probe.

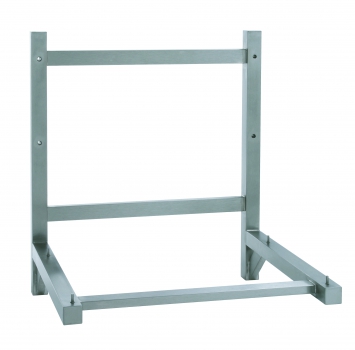

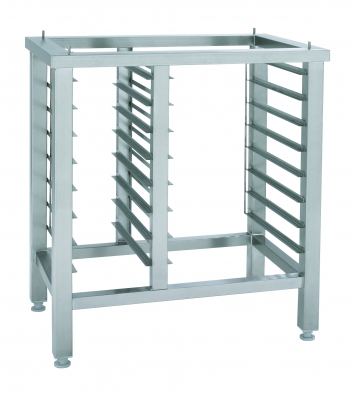

Retigo Vision 623 combi ovens are ideal for operations serving up to 50 portions per day. It can accommodate (6) 13.9“ x 12.8“ cooking pans or (6) x 2/3 GN pans. These combi ovens can be installed on a standard stand, on a wall-mounted console, or right on a table. Model 623 can be built into a set with another 623 combi oven. This model is equipped with a boilerless Advanced Direct System for steam generation. The heat source is electricity.

Request

TODO /3d/nejaky_soubor_b-623.html

Unique benefits

Vision Perfect Cooking

Make your diners a great reason to keep returning to your place. With Retigo Vision combi ovens, you have the peace of mind that you will always achieve outstanding cooking results. The prepared foods have a perfect color, are juicy, crispy, and healthy with minimal fat content.

Vision Design

Simply keeps you cooking with ease and comfort. Experience an excellent combination of features, exceptional ergonomics, and an attractive appearance. All this with a focus on safety, hygiene, and long-time reliability.

Vision Controls

Gives you time to concentrate on cooking and things that really matter to you. The simplest controls on the market will save you time and enable you to quickly and easily make all the necessary settings. Display response is perfect even with grease or gloved hands.

Smart Investment

Generates money on savings for you every day. In-built heat exchanger, triple glazed door glass, 50 mm thick thermal insulation combined with low consumption automatic cleaning will ensure you a great return on investment.

Features & Benefits

Cooking

  • Hot air 86 – 572 °F
  • Combination 86 – 572 °F
  • Steaming 86 – 266 °F
  • Bio steaming 86 – 208 °F
  • Overnight cooking – Saves time and money.
  • Rack timing – Set individual rack times for multi-product cooking.
  • AHC (Active Humidity Control) – Automatic humidity control for great cooking results.
  • Advanced steam generation system – Two-step water preheating with an in-built heat exchanger for perfect steam cooking results.
  • Crosswise racks – Safer and comfortable GN handling. Better product visual control.
  • Regeneration/banqueting – Cook, chill, and regenerate to serve more diners in shorter times.
  • Delta T cooking – Use the advanced cooking method to reduce shrinkage on slow-roasted meats getting amazing results.
  • Low-temperature cooking – Benefit from less weight loss, better taste.
  • Cook & Hold – Let it cook and held serving temperature.
  • Golden Touch – Add a golden-brown, crispy finish with just a touch.
  • Automatic preheating/cooling minimizes the loading temperature drop. Start cooking with the desired temperature.
  • Sous-vide, Drying, Sterilization, Confit, Smoking – Great way to make your menu special.

Vision Touch Controls

  • 8“ display – Perfect overview, easy and intuitive control.
  • MyVision – Customize your menu so you have all you need right on the main screen.
  • Touch panel – Panel works under all conditions and has a fast response, no mechanical elements, buttons, or wheels.
  • Easy Cooking – Get great results even with less experienced chefs thanks to easy cooking guidance.
  • 6-point core probe – Allows foods to be automatically cooked to any desired internal temperature.
  • 1000 programs with 20 steps
  • Pictograms – Take a food picture on the main screen. Match it with a program. Touch it to get the desired cooking results repeatedly.
  • Learn function – All cooking adjustments are recorded. In the end you save great results achieved and recall them again when needed.
  • Last 10 – Cooking process easy to be used again but just a touch.
  • Multitasking – Unique opportunity to work with a display during cooking.
  • Automatic start – The ability to schedule a delayed start.
  • EcoLogic – Energy consumption shown right on the screen. Keeps your cost under control.
  • Continuous cooking time option - Saves your time during busy operations.

Other equipment

  • Active Cleaning – Low-cost automatic cleaning. No chef‘s time spent on cleaning anymore.
  • Double glazed door glass - Advanced energy savings and external glass that does not burn you.
  • Auto-reversing fan – Excellent evenness to deliver high product color and texture uniformity.
  • Flap valve – Patented dehumidification system for great color and crispiness.
  • Massive door handle – Comfortable and safe handling with silver ion material contain for bacteria reduction.
  • AISI 304 stainless steel – Exceptional quality with a special coating for an extended lifetime.
  • Hygienic cooking chamber with round inner corners – Trouble-free maintenance.
  • Hand shower – External water supply hose with a spray nozzle. Extra water source at your disposal.
  • Run-off tray under the door – No slipping on the wet floor.
  • Two water inlets – Saves a water treatment unit‘s capacity.
  • WSS (Water Saving System) – Special drain system & in-built heat exchanger to save water-related cost.
  • Removable pan holders with 2.6“ spacing.

Connectivity

  • HACCP records – Easy and immediate analysis of critical cooking points.
  • Complete operating records

Operation logs

  • HACCP records – Easy and immediate analysis of critical cooking points.
  • Complete operating records

Service

  • SDS (Service Diagnostic System) – Easy unit check-up and troubleshooting.

Technical data

ModelB 623 i
Technical specification 2E0623IZ
Heat source Electricity
Steam generation Advanced injection (Boilerless)
Capacity 6 x 13.9“ x 12.8“ cooking pans
Capacity of meals 30-50 meals per cooking cycle
Spacing 2.6“
Dimensions (w x h x d)  26.9“ x 23.7“ x 23.1“
Weight 136 lbs
Total power 4.2 kW
Heat power 3.9 kW
Fuse protection 15 A
Voltage 3~/208 V/50-60 Hz
Optional voltage 3~/240 V/50-60 Hz, 3~/480 V/50-60 Hz, 2~/208 V/50-60 Hz, 2~/240 V/50-60 Hz
Noise level max. 70 dBA
Water/Drain connection G 3/4” / 1.6“

Temperature 86 – 572 °F

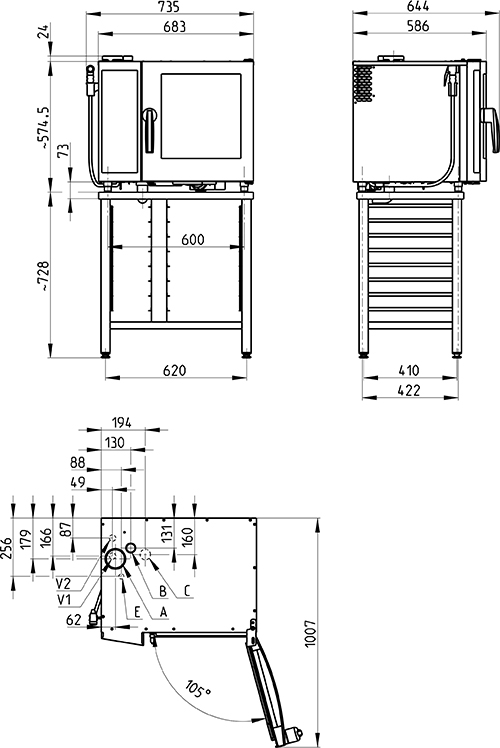

Drawings

Electric Vision combi oven B 623 i

 A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
