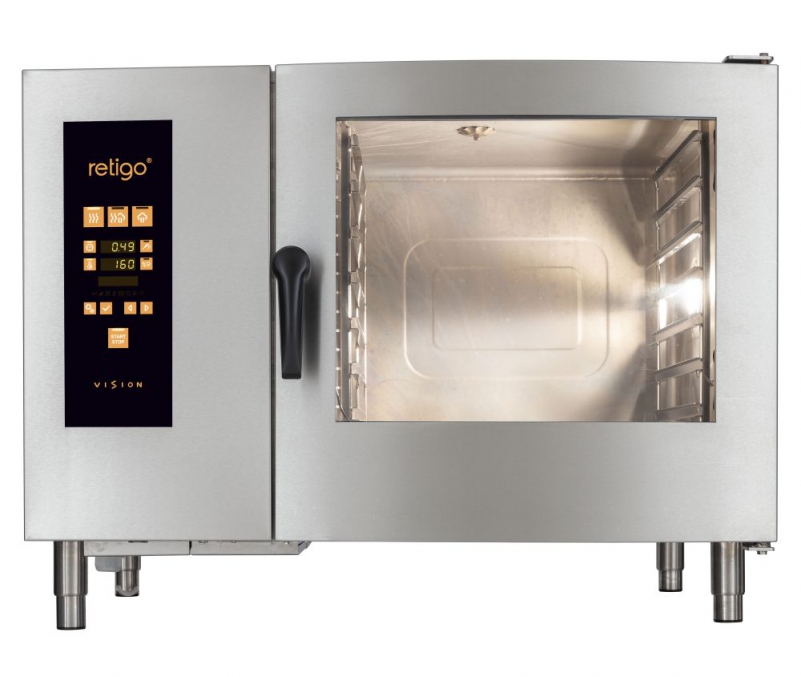

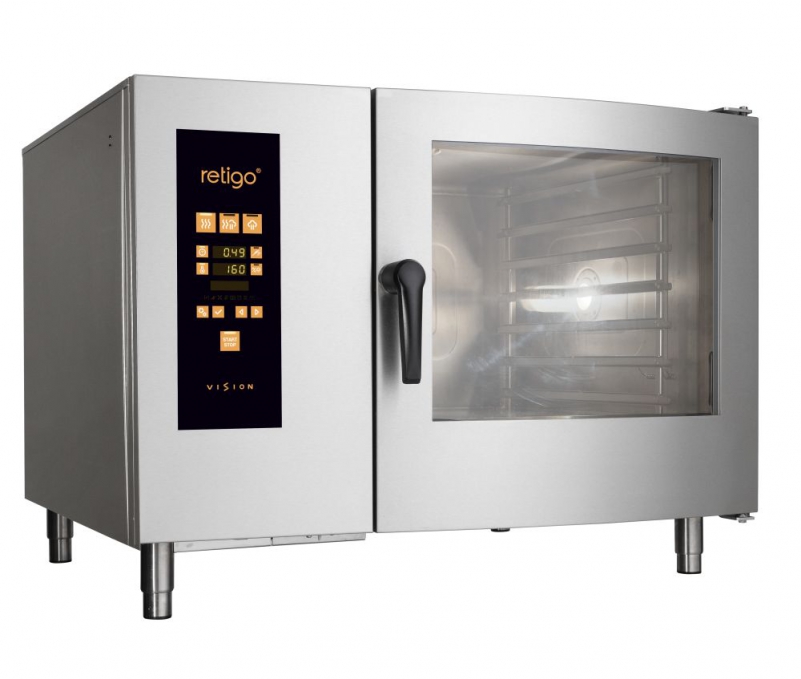

Combi oven O 621 i, ig

Combi oven O 621 i, ig

The model series of combi ovens RETIGO Orange Vision was created from requirements to satisfy customers with fewer demands on the number of functions in the basic configuration, but with emphasis on high quality and easy control. Orange Vision combi ovens are equipped with an automatic cleaning system, 7-speed fan, 1-point core probe, and flap valve. The elegant functional design underscores the simplicity of devices, the LED display enables easy settings and control.

The size of 621 is ideal for operations with a capacity of 100-300 meals a day. It can accommodate (7) 8" x 26" sheet pans or (14) 12" x 20" hotel pans or (7) x 2/1 GN pans. Wide-ranging accessories can be purchased to go with the 1021 size - stainless steel stands, etc. Model 621 can be built into a set with 621 or 1021 combi oven. This model is equipped with a boilerless Advanced Direct System for steam generation. The heat source is electricity.



Request

TODO /3d/nejaky_soubor_b-623.html

Unique benefits

Vision Perfect Cooking

Make your diners a great reason to keep returning to your place. With Retigo Vision combi ovens, you have the peace of mind that you will always achieve outstanding cooking results. The prepared foods have a perfect color, are juicy, crispy, and healthy with minimal fat content.

Vision Design

Simply keeps you cooking with ease and comfort. Experience an excellent combination of features, exceptional ergonomics, and an attractive appearance. All this with a focus on safety, hygiene, and long-time reliability.

Vision Controls

Gives you time to concentrate on cooking and things that really matter to you. The simplest controls on the market will save you time and enable you to quickly and easily make all the necessary settings. Display response is perfect even with grease or gloved hands.

Smart Investment

Generates money on savings for you every day. In-built heat exchanger, triple glazed door glass, 50 mm thick thermal insulation combined with low consumption automatic cleaning will ensure you a great return on investment.

Features & Benefits

Cooking

  • Hot air 86 – 572 °F
  • Combination 86 – 572 °F
  • Steaming 86 – 266 °F
  • Bio steaming 86 – 208 °F
  • Overnight cooking – Saves time and money.
  • Advanced steam generation system – Two-step water preheating with an in-built heat exchanger for perfect steam cooking results.
  • Crosswise racks – Safer and comfortable GN handling. Better product visual control.
  • Regeneration/banqueting – Cook, chill and regenerate to serve more diners in shorter times.
  • Automatic preheating/cooling minimizes the loading temperature drop. Start cooking at the desired temperature.

Vision Touch Controls

  • Touch panel – Panel works under all conditions and has a fast response, no mechanical elements, buttons or wheels.
  • Automatic start – The ability to schedule a delayed start.
  • Continuous cooking time option - Saves your time during busy operations.

Other equipment

  • Active Cleaning – Low-cost automatic cleaning. No chef‘s time spent on cleaning anymore.
  • Triple glazed door glass - Advanced energy savings and external glass that does not burn you.
  • 7 Fan speeds – Precise control of air distribution for desired results with different products.
  • Automatic Fan stop – No scalding when the door opened quickly.
  • Auto-reversing fan – Excellent evenness to deliver high product color and texture uniformity.
  • Massive door handle – Comfortable and safe handling with silver ion material contains for bacteria reduction.
  • AISI 304 stainless steel – Exceptional quality with a special coating for an extended lifetime.
  • Hygienic cooking chamber with round inner corners – Trouble-free maintenance.
  • Run-off tray under the door – No slipping on the wet floor.
  • Two water inlets – Saves a water treatment unit‘s capacity.
  • WSS (Water Saving System) – Special drain system & in-built heat exchanger to save water-related cost.
  • Removable pan holders with 2.9" spacing.

Connectivity

  • USB plug-in – Transfer useful data easily to and from the combi oven.
  • VisionCombi software – Program and pictogram management in your PC, HACCP data view.

Operation logs

  • HACCP records – Easy and immediate analysis of critical cooking points.
  • Complete operating records

Service

  • SDS (Service Diagnostic System) – Easy unit check-up and troubleshooting.

Technical data

Model O 621 i O 621 ig
Technical specification 2E0621IA 2G0621IA
Heat source Electricity Natural gas / Propane
Steam generation Advanced injection (Boilerless) Advanced injection (Boilerless)
Capacity 7 x Full-size cooking pans 7 x Full-size cooking pans
Capacity (optional) 14 x Half-size cooking pans 14 x Half-size cooking pans
Capacity of meals 100 - 300 meals per cooking cycle 100 - 300 meals per cooking cycle
Spacing 2.9” 2.9”
Dimensions (w x h x d)  44.1” x 32.6” x 40.1” 44.1” x 32.6” x 40.1”
Weight 333 lbs 353 lbs
Total power 15.3 kW 0.8 kW
Heat power 14.7 kW 99,000 BTU/hr
Fuse protection 45 A 15 A
Voltage 3~/208 V/50-60 Hz 1~/120 V/50-60 Hz
Optional voltage
3~/240 V/50-60 Hz, 3~/480 V/50-60 Hz -
Noise level max. 70 dBA max. 70 dBA
Water/Drain connection G 3/4” / 2” G 3/4” / 2”
Gas connection - NPT 3/4”
Temperature 86 – 572 °F 86 – 572 °F



Drawings

Electric Vision combi oven O 621 i

A - Flap Valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
