The model series of combi ovens RETIGO Orange Vision was created from requirements to satisfy customers with fewer demands on the amount of functions in the basic configuration, but with emphasis on high quality and easy control. Orange Vision combi ovens are equipped with an automatic cleaning system, 1-point core probe, and flap valve. The elegant functional design underscores the simplicity of devices, the LED display enables easy settings and control.

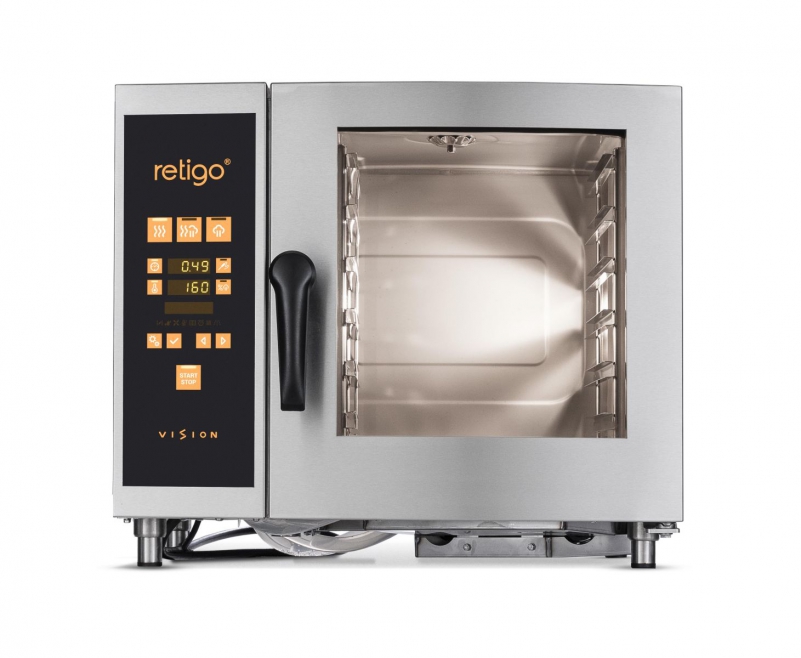

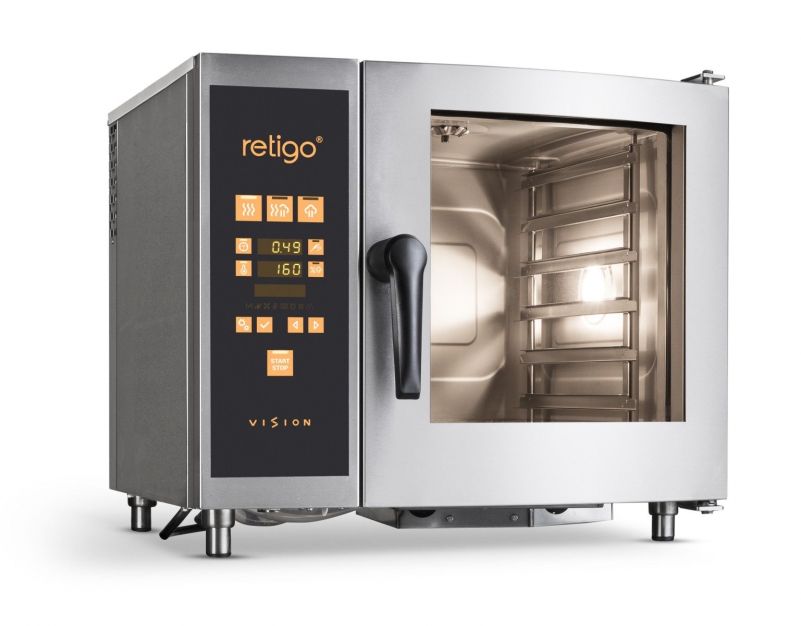

Retigo Vision 623 combi ovens are ideal for operations serving up to 50 portions per day. It can accommodate (6) 13.9“ x 12.8“ cooking pans or (6) x 2/3 GN pans. These combi ovens can be installed on a standard stand, on a wall-mounted console, or right on a table. Model 623 can be built into a set with another 623 combi oven. This model is equipped with a boilerless Advanced Direct System for steam generation. The heat source is electricity.
Make your diners a great reason to keep returning to your place. With Retigo Vision combi ovens, you have the peace of mind that you will always achieve outstanding cooking results. The prepared foods have a perfect color, are juicy, crispy, and healthy with minimal fat content.
Simply keeps you cooking with ease and comfort. Experience an excellent combination of features, exceptional ergonomics, and an attractive appearance. All this with a focus on safety, hygiene, and long-time reliability.
Gives you time to concentrate on cooking and things that really matter to you. The simplest controls on the market will save you time and enable you to quickly and easily make all the necessary settings. Display response is perfect even with grease or gloved hands.
Generates money on savings for you every day. In-built heat exchanger, triple glazed door glass, 50 mm thick thermal insulation combined with low consumption automatic cleaning will ensure you a great return on investment.
Model | O 623 i |
---|---|
Technical specification | 2E0623IZ |
Heat source | Electricity |
Steam generation | Advanced injection (Boilerless) |
Capacity | 6 x 13.9“ x 12.8“ cooking pans |
Capacity of meals | 30-50 meals per cooking cycle |
Spacing | 2.6“ |
Dimensions (w x h x d) | 26.9“ x 23.7“ x 23.1“ |
Weight | 136 lbs |
Total power | 4.2 kW |
Heat power | 3.9 kW |
Fuse protection | 15 A |
Voltage | 3~/208 V/50-60 Hz |
Optional voltage | 3~/240 V/50-60 Hz, 3~/480 V/50-60 Hz, 2~/208 V/50-60 Hz, 2~/240 V/50-60 Hz |
Noise level | max. 70 dBA |
Water/Drain connection | G 3/4” / 1.6“ |
Temperature | 86 – 572 °F |
A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
100 - 300 meals
300 - 500 meals
400 - 600 meals
600 - 900 meals
30 - 50 meals
51 - 150 meals
151 - 250 meals
400 - 600 meals
